AUTOMATIC COIL WINDING MACHINE FOR SUBMERSIBLE PUMP STATOR, BOBBIN, TRANSFORMER

Model No: ND-R160
Place of Origin: Zhejiang,China (Mainland)
Diameter of Wire: 0.08-1.0mm
Max Winding Form Diameter: 250mm
Rotation speed: 3200R.P.M
Machine productivity: around 1500 pcs/8 hours
Winding tooling distance: 210mm-280mm
Max Winding Diameter: 250mm
Wire amplitude: 0-30mm
Effective distance between winding shafts: 550mm-700mm
Power supply: 220V/50Hz
Dimension: 1550mm × 1250mm × 1300mm
View the Video   video

inquire

skypebasketAdd to Basket  Edit

Share |

Product Description

Product Culture
Payment & Shipping Terms Supply Capacity
Unit Price: 10000.0~30000.0 USDProduction Capacity:30 sets
Payment Term:L/C, T/TPacking:Wooden case which is...
MOQ:1 Set/SetsDelivery Date:35 days
Means of Transport:Ocean, Air

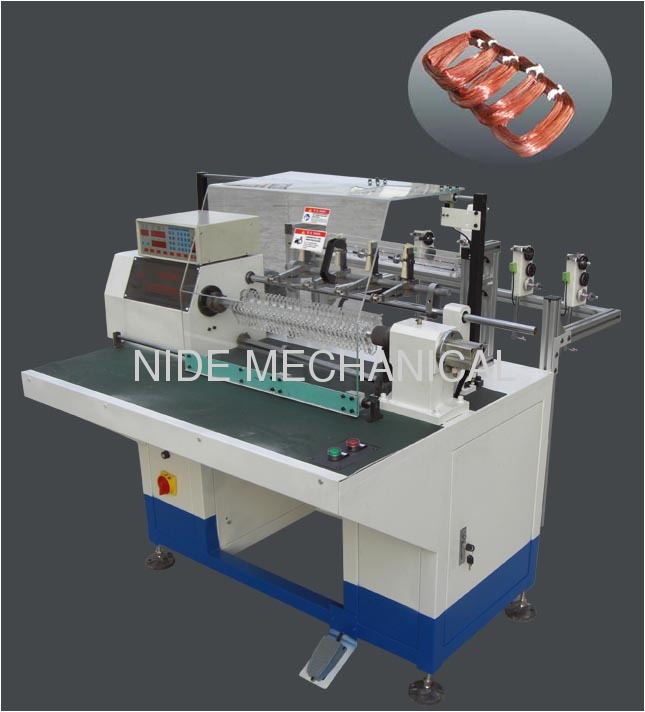

This knid of Coil winding machine is suitable for multi-connected and multi layer winding;wind 1-8 coils simultaneously at one time; automatic slot change,starting winding position,idling start,idling stop,double-ended stop, automatic reset and automatic start could be set in control system. There are two alternate spindles to facilitate higher output; apply to all kinds of micro motors such as an motor,pump motor,air conditioner motor,three phase machine,etc. Turns number,wire diameter can be set in the controller.

Technical data:

Diameter of wire

0.08~1.0mm

Wire amplitude

0~30mm

Max winding diameter

250mm

Winding tooling distance

210mm-280mm

Effective distance between winding shafts

550mm-700mm

Rotation speed

3200R.P.M

Input

220V/50Hz

Air source

0.5-0.8MPa

Machine productivity

1500pcs/ 8 hours

Dimension

1550mm × 1250mm × 1300mm

Weight

≈ 750kg








Winding Controller:

Here you could set the wire diameter,turn number,coil number,and will dispaly the output.And you could pre-set the output,machine will stop automatically once it produces the required quantity

Coils

Automatic Coil Winding Machine
Automatic Coil Winding Machine

Product Culture

What kind of coil winding machine does square transformer need?
During the production of square transformer, the main equipment is coil winding machine; there are many kinds of coil winding machine in the market, what kind of machine you should choose?
Firstly, pay attention to specificity, only the special machine can achieve high efficiency. Secondly, pay attention to the wire diameter and bobbin size, different products need different wire tensioner and machine.
