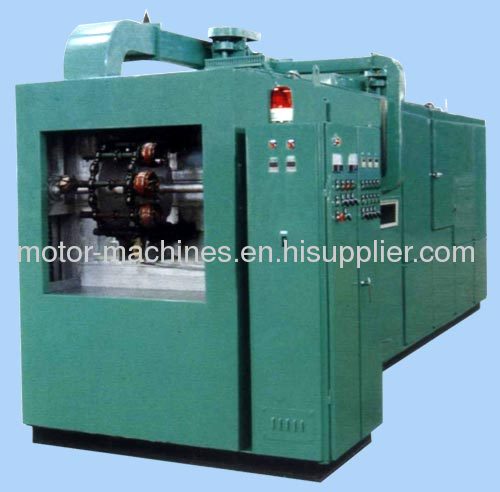

Automatic Armature Trickling Impregnation Machine

Model No: ND-ZDG
Place of Origin: Zhejiang,China (Mainland)
Heating time: less than 45 min
Tunnel working temperature: 0~160'C
Pitch time: 0~10 min adjustable
Working position: According to your output requirement
Power: According to your products
Machine dimension: According to your output requirement
View the Video   video

inquire

skypebasketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price: 20000.0~40000.0 USDProduction Capacity:40 sets
Payment Term:L/C, T/TPacking:Wooden case which is...
MOQ:1 Set/SetsDelivery Date:35 days
Means of Transport:Ocean

Armature trickling machine is mainly used for armature insulation treatment. The whole process, except for loading and unloading armature, is completely automatically. Armature trickling machine can automatically finish the full procedure of pre-heating, air cooling, trickling (rolling), distribute even and post curing, etc. The automatic production guarantees the good and stable quality standard of the armature.

Specification

76
ZDG63-156
50

76
ZDG63-156
50

76
ZDG63-200
50

76
ZDG63-260
50

ZDG50-320



Working position


124×2

156×2

200×2

260×2

320×2

Position pitch

mm

76   63    50

Heating time

min

≤45

Tunnel working

temperature

0~160℃

Pitch time

min

0~10 adjustable

Power

kw

28
25
22

36
28
25

45
36
28

54
45
36

40

Machine dimension

m

4.9×1.6×2.1
4.1×1.6×2.1
3.2×1.6×2.1

6×1.6×2.1
5×1.6×2.1
4×1.6×2.1

7.6×1.6×2.1
6.4×1.6×2.1
5.1×1.6×2.1

9.8×1.6×2.1
8.2×1.6×2.1
6.6×1.6×2.1

3.3×1.6×2.5

Weight

t

3.5
3
2.5

4.2
3.5
3

4.8
4.2
3.5

5.8
5.1
4.3

3.5
