High Quality folder inserter Insulation paper folding inserting machine

Model: CZDL1-90-135B
Place of Origin: Zhejiang,China (Mainland)
Name: insulation paper inserting machine
Color: white
Size: Middle
Stator OD: ≤135mm
Stack Height: 20-90mm
Weight: 200Kg
After-Sales Service: Overseas Service Center Available
Power supply: 380V/50/60HZ 0.75KW
Dimension: 1200*650*1100mm
Condition: new

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:10000.0 USDProduction Capacity:100 sets
Trade Term:FOB,CIFPacking:Wooden case which is...
Payment Terms:L/C, T/TDelivery Date:60 days
Min. Order:1 Set/Sets
Means of Transport:Ocean

Automatic High Quality stator folder inserter Insulation paper folding inserting machine


(1)   Application

This automatic stator slot Insulation Paper Inserting Machine is suitable for small and medium-sized three phase motor, gasoline generator, etc.


(2)  Technical data:

Proudution nameCZDL1-90(135) stator slot paper inserting machine
Stator stack length: 20~90mm
Stator OD: max 135mm
Stator ID:20~90mm
Folding height/width: 2~4mm/4~7mm
Insulation paper thickness:0.188~0.35mm
Efficiency:≈0.5s/s
Power: 380V/50/60HZ 0.75KW
Machine weight: ≈200kg
Machine dimension: (L)1200*(W)650*(H)1100mm


(3)  Machine main function and characteristic:

The cutting edge of insulation paper should be neat, no damage, and free of burr. The stator should not be deformation and stator lamination should not be upward resulting from paper inserting.

The whole set of tooling can be changed, and it takes about 30min.

The paper inserting Machine will stop automatically when paper jams.

With a text displayer, this machine can display and set all different models' parameter.

Primary qualification rate ≥99%, after rework, the rate ≥99.9%

Production capacity ≤1s/slot (exclude the loading/unloading time)

Paper width: stator stack length+14mm, edge folded: according to customer's requirement.

Operator needs to stand while operating. This machine adopts single hand system button.

This insulation paper inserting machine is suitable for Polyester Film insulation paper roll material with thickness 0.25mm and fixed width(width is decided by customer)

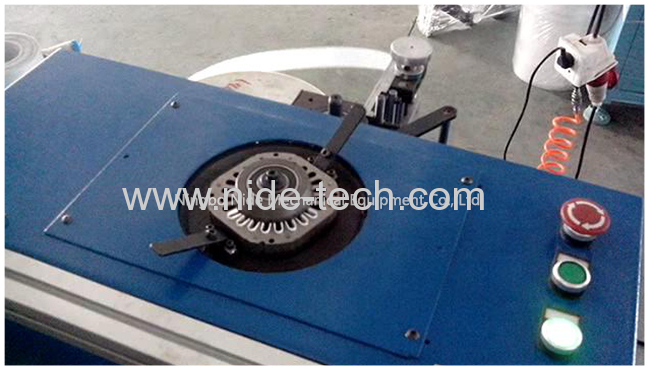

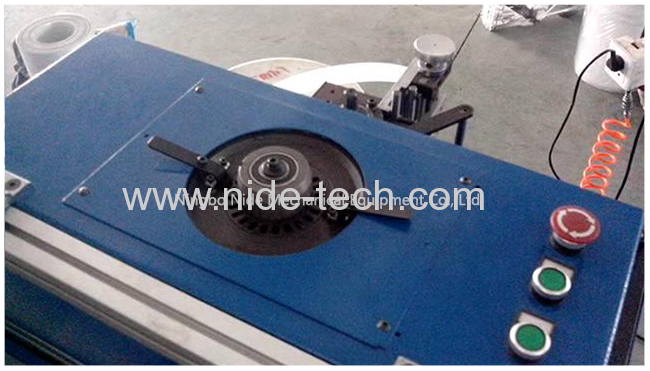

(4)The stator inslot paper inserting machine picture show

Besides paper inserting machine, we also supply different types of insulation materials for stator or armatures, such as insulation paper and wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
