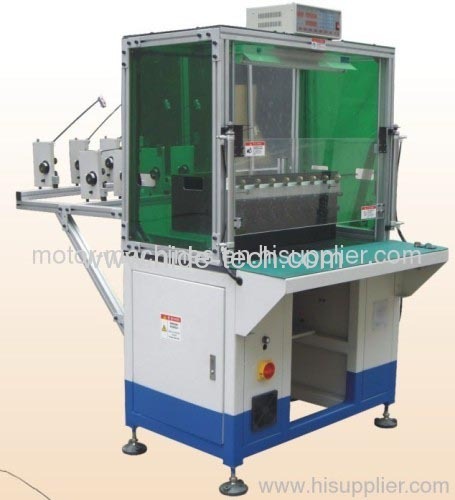

Multiple-head Winding Machine Eight Station Coiling Winding Machine Suitable for 0.08~0.8mm Wire Diameter

Model: ND-DR08
Place of Origin: Zhejiang,China (Mainland)
Wire diameter: 0.08mm~0.8mm
Winding head: 8
Diameter of frame: 20mm~120mm
No-load speed: ≤3000RPM
Max transfer distance: ≤250mm
Min air pressure: 0.4MPa
Voltage: 220V/50Hz/60Hz
Power supply: 750W
Weight: 850Kg
Dimension: 1500 X 1200 X 2100mm

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:10000.0 USDProduction Capacity:20
Trade Term:FOB,CIF,FCAPacking:Wooden case which is...
Payment Terms:L/C, T/TDelivery Date:35 days
Min. Order:1 Set/Sets
Means of Transport:Ocean, Air, Land


Multiple- head Winding Machine is an eight-station coil winding machine suitable for all kinds of frame windings, electronic winding and combined motor winding; obtain functions of automatic winding, wire arraying,slot skipping, turn number, steps and wire diameter setting, etc. Wire holder is controlled by magnetic damping tensioner; wire tension is stable and adjustable based on wire diameter; orderly wire array is greatly helpful to ensure product quality.

Technical Parameter:

Wire diameter

0.08~0.8mm

No-load speed

≤3000RPM

Winding head

8

Diameter of frame

20~120mm

Max transfer distance

≤250mm

Min air pressure

0.4 MPA

Voltage

220V/50/60Hz

Power

750W

Weight

850Kg

Dimension

1500*1200*2100mm

























Information needed for Automatic Stator Coil Winding Machine inquiry

It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.



Multiple-head Winding Machine Eight Station Coiling Winding Machine Suitable for 0.08~0.8mm Wire Diameter

Multiple-head Winding Machine Eight Station Coiling Winding Machine Suitable for 0.08~0.8mm Wire Diameter

Finshined coil by using this machine
Multiple-head Winding Machine
Finshined coil by using this machine

Multiple-head Winding Machine
Finshined coil by using this machine

Multiple-head Winding Machine
