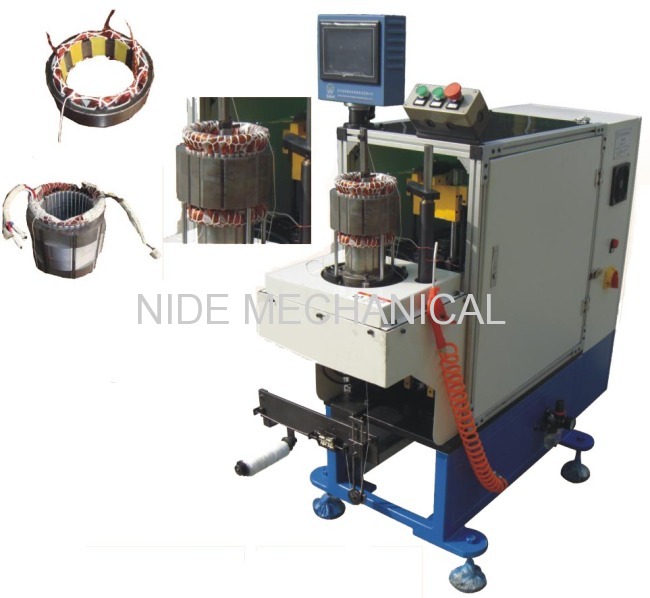

Single-side Inuction Motor Stator Winding Lacing Machine

Model No: ND-DB100
Place of Origin: Zhejiang,China (Mainland)
Control: PLC
Stator ID: 35-120mm
Stator lamination thickness: 10-100mm
Max Coil height: 40MM
Lacing speed: 0.7S/slot
Lacing mode: Slot by slot/interval slot/ fancy lacing
Stator OD: ≤160mm
Power supply: 220V/50/60Hz 2Kw
Weight: 600Kg
Dimension: 1000*600*1150mm

inquire

skypebasketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price: 10000.0~40000.0 USDProduction Capacity:40 sets
Payment Term:L/C, T/TPacking:Wooden case which is...
MOQ:1 Set/SetsDelivery Date:60 days
Means of Transport:Ocean, Air

Stator is loaded on Single-head Winding Lacing Machine vertically; PLC programming; single-needle and single-side automatic lacing; needle transpositioning, hooking are controlled by servo system; spindle adopts frequency speed control; slot by slot lacing, intercal lacing, and fancy lacing could be achieved by setting in human-machine interface; especially apply to multi sizes, low output or more lead stator winding lacing.

Technical Data:

1.Stator ID

φ35-φ120

2. Stator lamination thickness

10-100mm

3. Max winding height

40MM

4. Lacing speed

0.7S/slot

5. Power

220V 50-60HZ

6. Air pressure

 >0.4mpa




Category: Winding Lacing Machine
